Slides badge

Testing

Learning Intentions

  • Understand and use personas, test cases and scenarios to test a website

  • Understand what areas of a website are tested (at Higher)

  • Understand responsive website design and how to test it

Success Criteria

  • I can explain why we use and use personas, test cases and scenarios when testing a website
  • I can test a website

Past Paper Questions

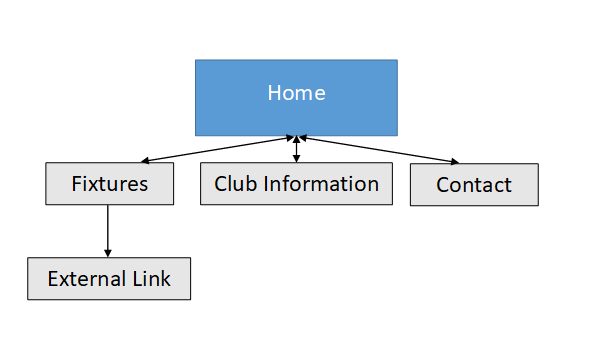

The Giants basketball team has a website. The website contains the following four pages

  • Home page
  • Information about the club
  • Upcoming fixtures
  • How to contact the club



All the pages on the site include a link back to the home page. The page with the fixture information also contains an external hyperlink to the Scottish Basketball League.



Draw the navigation structure for this website.

4 marks

2019 Q18 (a)

Past Paper Question

Low-fidelity prototype testing

  • Low-fidelity prototypes can be tested before they are developed into a finished product.
  • There are several ways in which they can be tested.

Usability testing

  • Usability testing is about testing the user experience (UX)
  • Websites are tested in terms of how easy they are to use and whether it achieves the original goals or not.
  • Usability testing starts right at the very beginning of the development cycle with the wireframe. A set of users are tested in carrying out specific instructions.

Personas

  • Personas are made-up users who represent a user base or a user group who will be using the website.
  • Often the personas will influence the developers to think what the fictitious user might need on the website.
  • Personas, also mentioned back in the Analysis stage, should be created before the Design stage but should be used as the basis of testing as well.

Test cases

  • These are a series of instructions that testers must carry out
  • They are created from the original requirements
  • If a tester cannot complete a task, the developer can clearly see why they can't (for example, it might be a usability issue or it might be a link doesn't actually exist)

Scenarios

  • These are like test cases, except they do not have a series of instructions are more open-ended.
  • In this case, open-ended means that there are several way of completing the task.

Order 3 bags of flour and next-day delivery. Ensure that the delivery person knows to put the flour in the mill.

Analysis

Test Scenario

Past Paper Questions

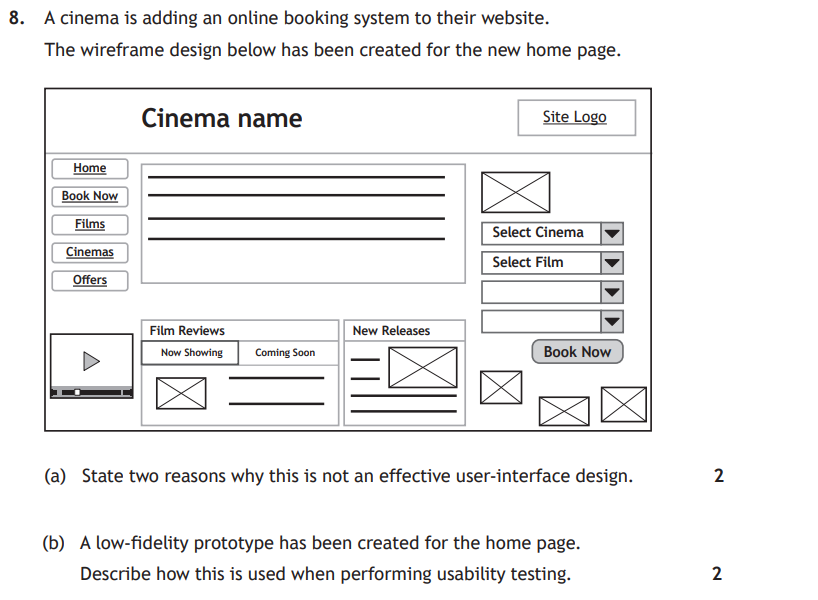

A cinema is adding an online booking system to their website. The wireframe design below has been created for the new home page.



















(a) State two reasons why this is not an effective user-interface design. 2 marks

(b) A low-fidelity prototype has been created for the home page. Describe how this is used when performing usability testing. 2 marks

2019 Q8 (a), (b)

Testing an implemented website

  • When a website is fully implemented it goes through rigorous testing
  • Because a website is front-facing and anyone can view and use it, some web developers keep a development and live version separate, meaning if they wish to apply changes they do so on the development website and test it over and over.
  • Testing a website (at Higher) involves:
    • Testing input validation
    • Testing a navigation bar
    • Ensuring that media content displays and works properly

Testing an implemented website

  • When a website is fully implemented it goes through rigorous testing
  • Because a website is front-facing and anyone can view and use it, some web developers keep a development and live version separate, meaning if they wish to apply changes they do so on the development website and test it over and over.
  • Testing a website (at Higher) involves:
    • Testing input validation
    • Testing a navigation bar
    • Ensuring that media content displays and works properly

Testing input validation

  • There are four types of input validation that can be checked:
    • Presence check (the use of required on a form element ensures that it has a value when submitted)
    • Length check (testing the length of an input field to ensure that the length of the text submitted matches the requirements)
    • Range check (ensuring that a numeric value is within the range specified in the requirements)
    • Restricted choice check (ensuring that the value the user entered is within a set of inputs, using a <select> element)

Testing navigation

  • Testing navigation of the website involves testing that each link works (there are tools out there that do this)
  • Checking for orphan pages (pages that do not link to any other pages)
  • Identifying broken internal links is often harder than identifying broken external links on a website that has a consistent layout. Can you think why?

Media testing

  • It's also very important to test the different forms of media on a website.
  • Images need to load, animations need to play and audio and video files need to load correctly and play properly.
  • It's also important to ensure that the media appears in the correct location on the page, as outlined in the original wireframe.

Compatibility testing

  • Compatibility testing is used to ensure that a webpage or website performs well on several different platforms. There are so many platforms that it becomes difficult to test on them all, but you can carry out general testing across a range of devices and browsers.
  • Responsive web design (RWD) is one of the most fundamental changes to website design that involves developing for a range of different devices (it's what makes web design so fun!)
  • Older browsers such as Internet Explorer 8 were absolutely awful in terms of JavaScript performance, memory usage and CSS compatibility.

Visit https://html5test.com/ and test the browsers you have available (you can try it on your phone also)



Answer the questions on Testing.

Task
