Types of computer networks


Write down two pros and two cons of using computer networks.

Learning Intentions

  • Explain what a network is

  • Be able to explain how networks are connected together

  • Be able to explain the difference between the peer-to-peer model and client-server model

Success Criteria

  • I am able to explain what a computer network is
  • I can discuss the advantages and disadvantages of client-server based networks vs peer-to-peer networks

Types of network

  • Wide Area Network or WAN

    • Covers countries and continents

  • Local Area Network or LAN

    • Covers a small area such as a school, home or office


  • A server is a special computer designed to carry out one specific job for another computer. There are several types of server including:
    • File servers

    • Print servers

    • Mail servers

    • Application servers

    • Web servers


  • A file server is is used as a central file storage. Users are given specific rights (such as read and write) to certain parts of the file server.
  • A print server is used to share a printer on the network
  • A mail server is used to send and receive emails
  • An application server is one that allows applications to be stored once on a server and then loaded on to the client computer's RAM when it is needed
  • Web servers are connected to the Internet and are used to host web and deliver webpages and files that can be accessed from any computer using a web browser.

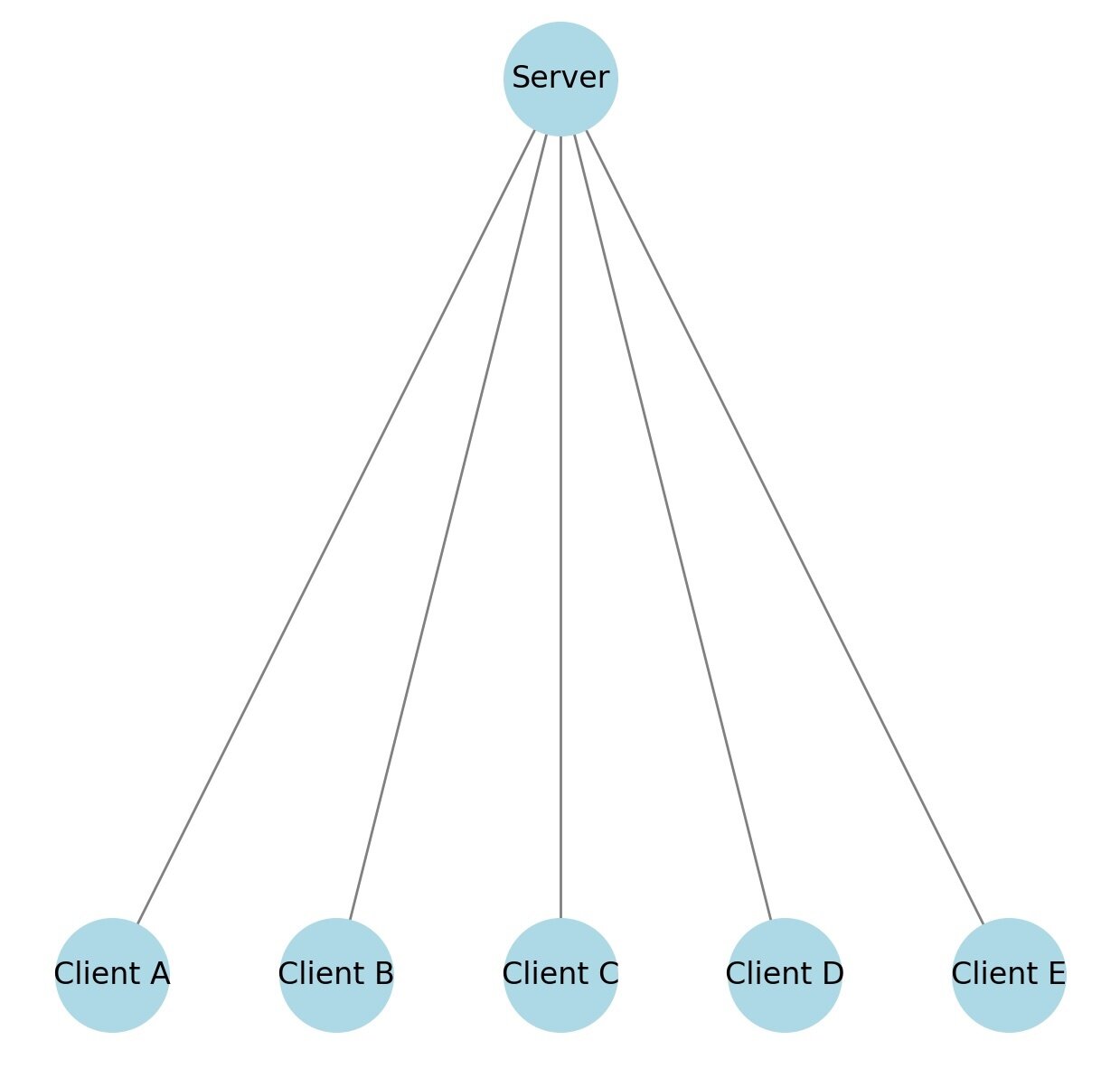

Client-server network

  • At the centre of a client-server network is a server that is responsible for allocation of resources

  • The client(s) access resources that the server manages and provides users with access to these resources

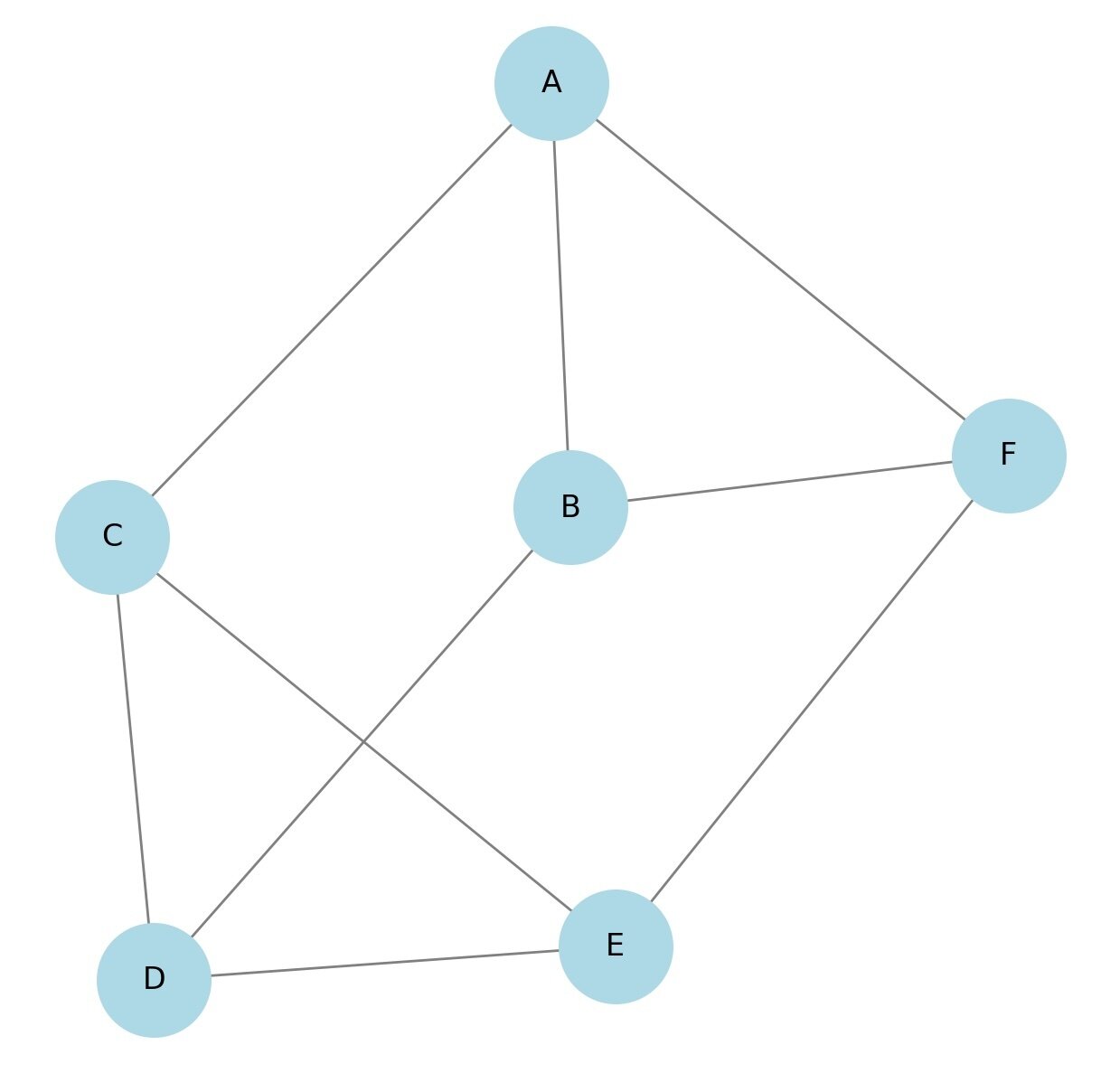

Peer-To-Peer network

  • In a peer-to-peer network each computer has it's own resources and security settings. Each computer is either directly (through a cable from each computer to the next and back) or indirectly (through many network hubs or switches) connected to each other.

Client server vs Peer-To-Peer

Client-server advantages:

  • One central file storage means that it is easier to set access rights to files and to back up the files

  • The same files can be accessed from any computer

Client-server disadvantages:

  • Cost – initial set up is expensive

  • Requires someone to manage the server

Peer-To-Peer vs Client-server

Peer-to-peer advantages:

  • Easy setup: most computers are ready to go out of the box

  • Cheap to setup: you need a few computers and cables and you’re good to go

Peer-to-peer disadvantages:

  • Backups are difficult because files are stored on different computers across the network

  • Security of files is not easy to enforce since it is not in a single central location

Networking devices

  • There are several types of networking devices, each with its own specific purpose within a network topology. The following devices are used to make up a network:
    • Hub
    • Switch
    • Router

A hub

  • A hub is a very basic device that allows multiple users to share one connection.
  • Any data sent to a hub is distributed to all devices on the hub. It's then up to each device to figure out if it was meant for them.
  • Hubs are very simple to build but also very slow compared with the more advanced switch.

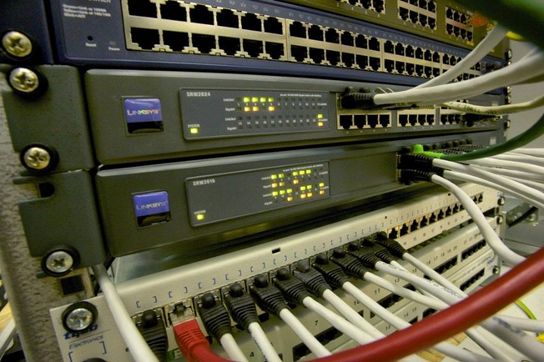

  • A switch is a more advanced version of a hub whereby the ports are given the full bandwidth of the network connection they are connected to.
  • They achieve this by using a technique known as polling where they move through each port on the switch very quickly and gives the full bandwidth of the port for a short period then moves on.
  • Each device only receives the data it requested with a switch.

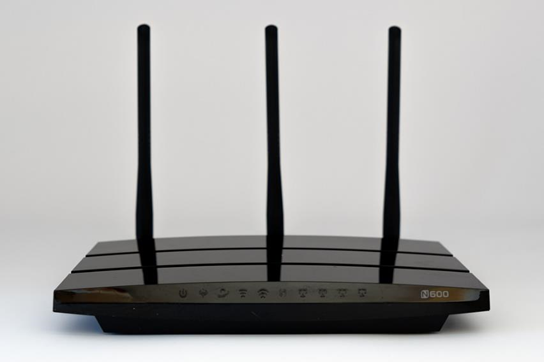

  • Routers are used to connect multiple networks together. For example, your home router will connect your home network (often built-in to the router too) to the Internet.
  • Routers are very common now, but back in the early 2000s most people had one connection to the Internet through a modem.

Organising networks

  • There are four common ways networks are organised.





  1. Complete the questions in the Networking worksheet 2.
  2. Continue your PowerPoint on networks. Add into it about client-server networks and peer-to-peer networks as well as hubs, switches and routers.



  1. Colour in your worksheet based on the descriptions of each key word using the colours below
